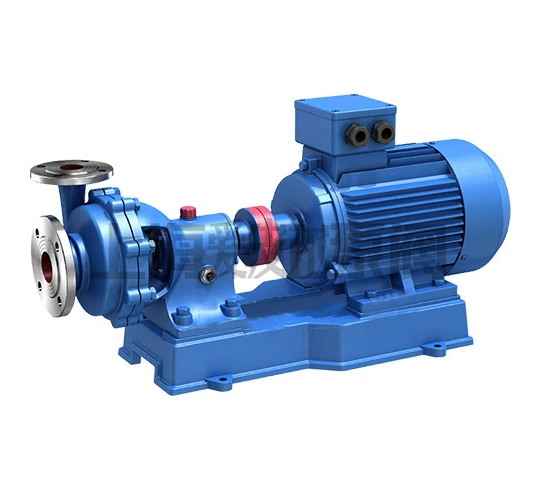

FB全不锈钢单级单吸耐腐蚀化工离心泵，采用先进离心泵的性能参数，同时按照用户新要求，巧妙组合设计而成。能根据使用温度、介质不同的环境情况下在FB1型基础上派生出适用于热水、高温、浓浆耐腐蚀泵、洁净的酒泵。该系列产品具有节能、噪音低、性能可靠、美观的优点。长征泵阀，专注隔膜泵，循环泵，节能水泵，离心泵，自吸泵，纸浆泵，化工泵，消防泵，排污泵，磁力泵，油泵，螺杆泵等，FB全不锈钢单级单吸耐腐蚀化工泵，多年专业不锈钢耐腐蚀离心泵生产经验，选长征泵阀,专业可信赖。
选型范围
● 流量：3.6-200m3/h
● 扬程：16-63m
● 转速：2900r/min
● 轴功率：0.48-38.3Kw
● 配用功率：0.75-55Kw
● 进口直径：25-1500mm
● 工作压力：2.0Mpa
产品详情
产品特点
适用场景

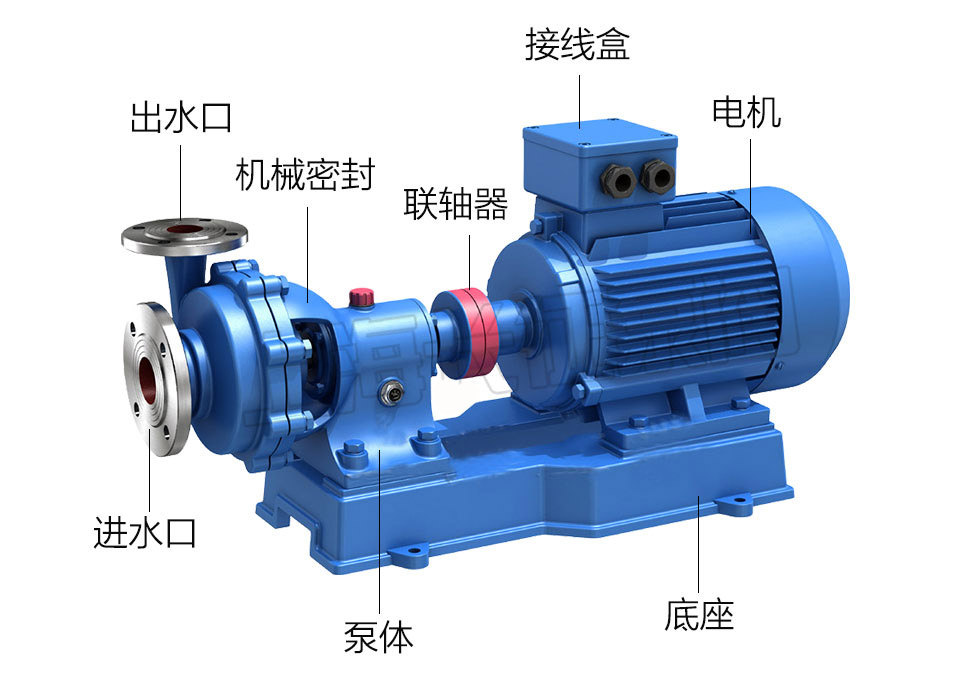

产品结构

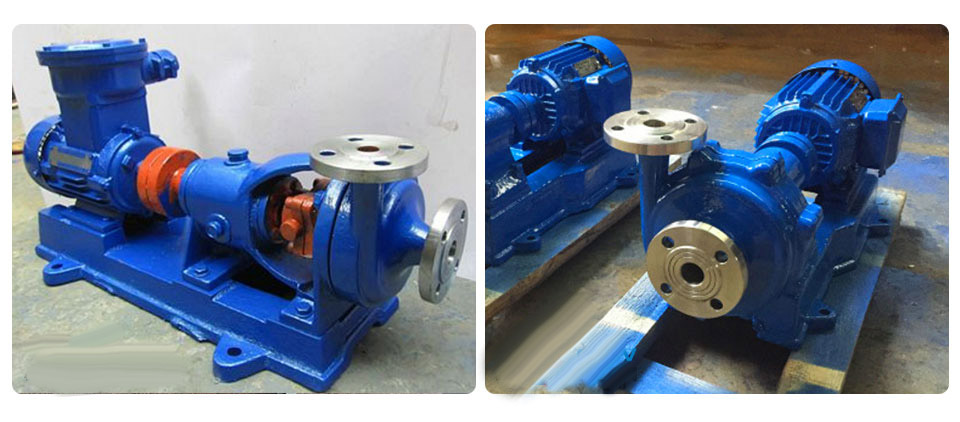

车间一角

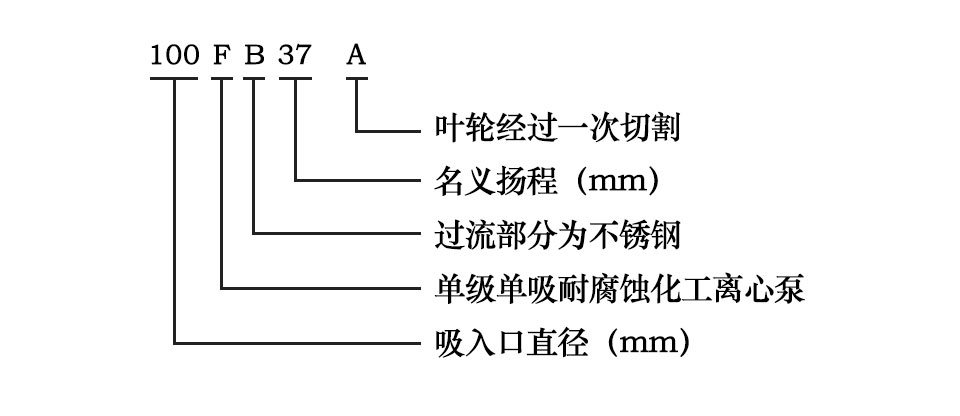

型号意义
型号参数
| 型 号 | 流量Q | 扬程H | 转速n | 效率(%) | 轴功率 | 配用功率 (Kw) | 汽蚀余量 | |
| (m) | (r/min) | (Kw) | (m) | |||||
| (m3/h) | (L/s) | |||||||
| 25FB-16 | 3.6 | 1 | 16 | 2900 | 33 | 0.48 | 1.1 | 4 |
| 25FB-16A | 3.27 | 0.91 | 12.5 | 2900 | 34 | 0.34 | 0.75 | 4 |
| 25FB-25 | 3.6 | 1 | 25 | 2900 | 30 | 0.82 | 1.5 | 4 |
| 25FB-25A | 3.27 | 0.91 | 40 | 2900 | 31 | 0.57 | 1.1 | 4 |
| 25FB-40 | 3.6 | 1 | 40 | 2900 | 23 | 1.71 | 3 | 4 |
| 25FB-40 | 3.27 | 0.91 | 33.5 | 2900 | 24 | 1.21 | 2.2 | 4 |
| 40FB-16 | 7.2 | 2 | 16 | 2900 | 44 | 0.71 | 1.5 | 4 |
| 40FB-16A | 6.55 | 1.82 | 12 | 2900 | 46.7 | 0.5 | 1.1 | 4 |
| 40FB-20 | 7.2 | 2 | 20 | 2900 | 42 | 0.93 | 1.5 | 4 |
| 40FB-25 | 7.2 | 2 | 25 | 2900 | 39 | 1.26 | 2.2 | 4 |
| 40FB-25A | 6.55 | 1.82 | 20.5 | 2900 | 40 | 0.94 | 1.5 | 4 |
| 40FB-40 | 7.2 | 2 | 40 | 2900 | 32 | 2.45 | 3 | 4 |
| 40FB-40A | 6.55 | 1.82 | 32 | 2900 | 33.5 | 1.73 | 2.2 | 4 |
| 40FB-63 | 7.2 | 2 | 63 | 2900 | 27 | 5.42 | 7.5 | 4 |
| 40FB-63A | 6.72 | 1.87 | 56 | 2900 | 29 | 3.75 | 5.5 | 4 |
| 50FB-16 | 14.4 | 4 | 16 | 2900 | 56 | 1.09 | 2.2 | 3.5 |
| 50FB-16A | 13.1 | 3.64 | 12 | 2900 | 57 | 0.81 | 1.5 | 3.5 |
| 50FB-25 | 14.4 | 4 | 25 | 2900 | 52 | 1.83 | 4 | 3.5 |
| 50FB-25A | 13.1 | 3.64 | 20 | 2900 | 51.5 | 1.42 | 3 | 3.5 |
| 50FB-40 | 14.4 | 4 | 40 | 2900 | 46 | 3.32 | 5.5 | 3.5 |
| 50FB-40A | 13.1 | 3.64 | 32.5 | 2900 | 45 | 2.62 | 5.5 | 3.5 |
| 50FB-63 | 14.4 | 4 | 63 | 2900 | 39 | 6.16 | 11 | 3.5 |
| 50FB-63A | 13.1 | 3.64 | 54.5 | 2900 | 38 | 5.24 | 7.5 | 3.5 |
| 65FB-25 | 28.8 | 8 | 25 | 2900 | 62 | 3.16 | 5.5 | 3.5 |
| 65FB-25A | 26.2 | 7.28 | 20 | 2900 | 62 | 2.36 | 4 | 3.5 |
| 65FB-30 | 28.8 | 8 | 30 | 2900 | 60.5 | 3.89 | 7.5 | 3.5 |
| 65FB-30A | 26.2 | 7.28 | 25 | 2900 | 61 | 2.79 | 5.5 | 3.5 |
| 65FB-40 | 28.8 | 8 | 40 | 2900 | 57.5 | 5.46 | 11.5 | 3.5 |
| 65FB-40A | 26.2 | 7.28 | 32 | 2900 | 58 | 4 | 7.5 | 3.5 |
| 65FB-64 | 28.8 | 8 | 64 | 2900 | 52.5 | 9.57 | 15 | 3.5 |
| 65FB-64A | 26.2 | 7.28 | 55 | 2900 | 51.5 | 7.82 | 7.5 | 3.5 |
| 80FB-15 | 54.4 | 15 | 15 | 2900 | 69 | 3.2 | 5.5 | 3 |
| 80FB-15A | 49.1 | 13.65 | 11.5 | 2900 | 69 | 2.62 | 4 | 3 |
| 80FB-24 | 54.4 | 15 | 24 | 2900 | 68 | 5.19 | 7.5 | 3 |
| 80FB-24A | 49.1 | 13.65 | 19 | 2900 | 68 | 3.94 | 7.5 | 3 |
| 80FB-38 | 54.4 | 15 | 38 | 2900 | 66.5 | 8.41 | 15 | 3 |
| 80FB-38A | 49.1 | 13.65 | 30.5 | 2900 | 66.5 | 6.34 | 11 | 3 |
| 80FB-60 | 54.4 | 15 | 60 | 2900 | 62.8 | 14.06 | 22 | 3 |
| 80FB-60A | 49.1 | 13.65 | 52 | 2900 | 62.5 | 11.56 | 18.5 | 3 |
| 100FB-23 | 100.8 | 28 | 23 | 2900 | 73 | 8.65 | 15 | 3 |
| 100FB-23A | 91.8 | 25.5 | 17.5 | 2900 | 73 | 6.51 | 11 | 3 |
| 100FB-37 | 100.8 | 28 | 37 | 2900 | 73 | 13.9 | 22 | 3 |
| 100FB-37A | 91.8 | 25.5 | 29 | 2900 | 70.5 | 11 | 18.5 | 3 |
| 100FB-57 | 100.8 | 28 | 57 | 2900 | 70.5 | 22.2 | 37 | 3 |
| 100FB-57A | 91.8 | 25.5 | 52 | 2900 | 70.5 | 18.77 | 37 | 3 |
| 150FB-22 | 190.8 | 53 | 22 | 2900 | 77 | 14.86 | 22 | 2.5 |
| 150FB-22A | 173.5 | 48.2 | 17.5 | 2900 | 78 | 10.6 | 18.5 | 2.5 |
| 150FB-35 | 190.8 | 53 | 35 | 2900 | 76 | 13.94 | 37 | 2.5 |
| 150FB-35A | 173.5 | 48.2 | 28 | 2900 | 76 | 17.42 | 30 | 2.5 |
| 150FB-56 | 190.8 | 53 | 56 | 2900 | 76 | 38.3 | 55 | 2.5 |
| 150FB-56A | 173.5 | 48.2 | 50 | 2900 | 76 | 32.1 | 37 | 2.5 |
