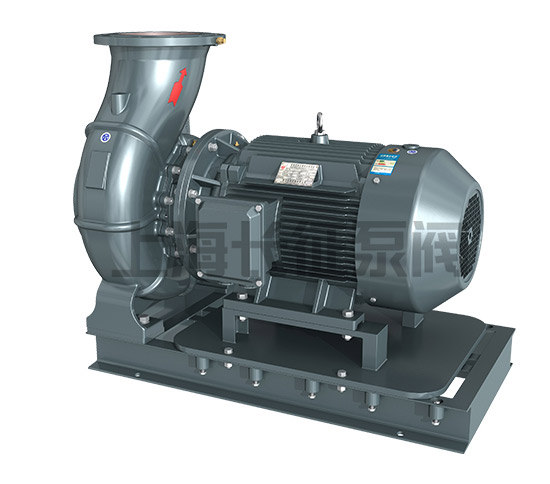

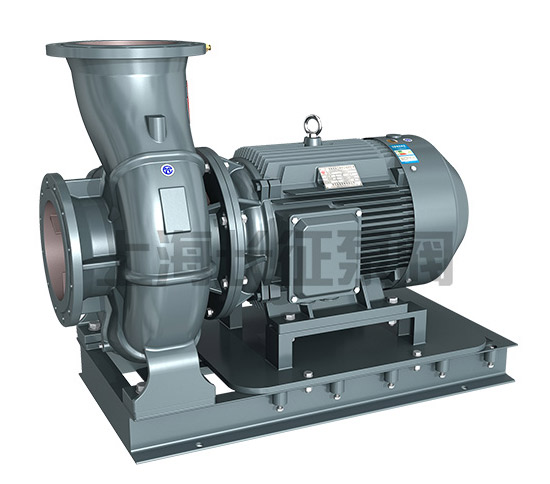

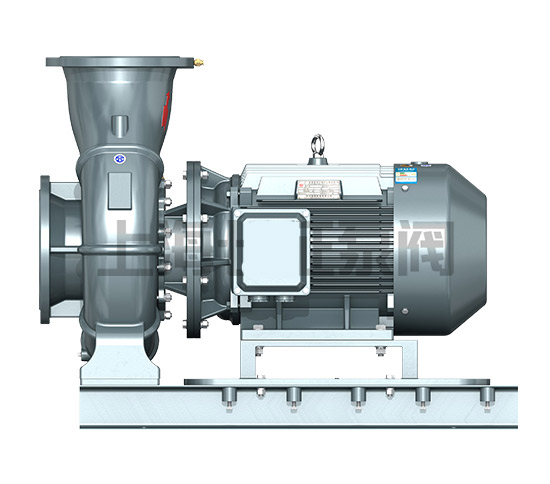

WTP大流量节能循环泵

卧式节能水泵，是我公司积极倡导节能降耗，应用三元流技术，专门为循环水系统量身而做具有较高性能的品质新型节能中央空调冷却循环水泵，如何解决水泵运行的耗能、高损耗是企业节能的关键所在，采用标准配置和节能性的设计，可靠性高。产品性能和稳定运行是WTP卧式节能循环泵行业的两大特点，该泵采用三元流理论与CFD软件计算，流体力学和优化方法相结合的技术路线，从考虑水力损失降低，效率高和气蚀性能着手，利用循环水系统独特的线型工况与自有静压，采用宽流道线型三元流动流体无负压叠加推送技术，寻找不同的流动和几何参数的组合，使泵充分达到节能降耗之目的。

选型范围

● 流量：9-1200m³/h
● 扬程：14-55m
● 介质：清水或物理化学性质类似于清水的其它液体。
● 介质温度：-10°C- +105°C之间
● 环境温度：≤40°C(海拔高度小于1000m时相对温度不超过95％)
● 工作压力：≤1.6MPa

产品详情

产品特点

结构图纸

安装尺寸

产品实拍

型号意义

故障排除

故障现象	产生原因	排除方法
针剧烈跳动 1.泵不吸水出口压力表及真空表指	a)泵内灌水量不够 b)吸水管路或密封仪表漏水 c)泵起动时出口阀门开启太大 d)底阀淹没深度不够 e)泵内没灌满水、有空气 f)进水管路漏气 g)进水管路安装不对，堵气 h)出口处堵气，逆止阀不能打开	a)检查底阀是否漏水并重新灌水 b)找出泄露部位并紧固 c)起动时出口闸阀关闭，转速正常后慢慢开启出口阀门 d)调整淹没深度至1.5倍进水管径以上 e)检查底阀是否漏水并重新安装灌水 f)密封漏气的部位 g)重新安装进水管路 h)排气
2.泵不吸水，真空表显示高度真空	a)底阀无法打开或已淤塞 b)过滤器，吸入管堵塞 c)吸程过高	a)校正更换底阀 b)拆卸并清除异物 c)降低吸程
3.泵不出水压力表显示有压力	a)出口管阻太大，止回阀等阀门未打开 b)电机反转 c)叶轮堵塞	a)减小管阻，更换阀门 b)正确接好电机配线 c)清除异物
4.机组不能起动	a)不具备起动条件 b)电机发生故障	a)检测是否符合起动条件 b)检测修理电机
5.达不到设计流量及扬程	a)有空气吸入 b)叶轮、进出水管路、过滤器部分阻塞 c)水位降低，淹没深度不够 d)转速不够	a)检查是否有空气吸入并避免 b)拆卸并清除异物 c)加深淹没深度 d)检查电源频率
6.机械密封漏水	a)介质含有颗粒或液体出现结晶现象 b)机械密封安装不平整 c)机械密封动静环表面无水干磨 d)正常磨损 e)O型圈损坏 f)动环、静环接触压力不够 g)动环、静环接触压力太大、造成过早磨损 h)电机轴窜动	a)清洗管路，防止结晶 b)重新安装平整 c)泵起动时放尽泵内空气，以防机封干摩擦 d)更换机封 e)更换O型圈 f)重新调整 g)重新调整 h)找出窜动原因并排除
7.轴承过热	a)轴承内油脂流失 b)润滑油老化 c)轴承有故障	a)补充润滑油 b)更换润滑油 c)检查、修理或更换
8.水泵噪声及振动	a)泵及管路有空气未排除 b)水泵偏离设计工况运行 c)水泵超负荷运行 d)轴承缺油或磨损 e)泵及管路支撑不良 f)泵发生汽蚀	a)排除空气 b)在设计点附近运行 c)调节阀门减载运行 d)更换轴承补充润滑油 e)加强支撑，采取隔离措施 f)改善吸入条件，避免汽蚀
9.电机超电流	a)泵超大流量运行 b)叶轮与泵体口环擦碰 c)介质混入其他异物 d)电压过低 e)轴承损坏 f)转速过快 g)电缆线绝缘不够 h)电机绝缘不够	a)调节出口阀门 b)校正泵轴的同心度 c)排除异物 d)使泵在正常电压下运行 e)更换轴承 f)检查电源频率 g)更换 h)改善机组使用环境
10.电机烧毁	a)长时间超负荷运行 b)定子受潮 c)电机缺相运行	a)调节运行工况 b)改善机组使用环境 c)检查电源，排除故障

产品参数

型号	流量		扬程	效率	轴功率(Kw)	必需汽蚀余量(m)	电机
型号	(m³/h)	（L/s）	(m)	(%)	轴功率(Kw)	必需汽蚀余量(m)	功率(Kw)
50WTP13-16/2	9	2.5	17	55.9	0.75	2.3	1.1
	13	3.61	16	62.4	0.91
	15	4.17	14	65.5	0.87
50WTP13-20/2	9	2.5	21	53.5	0.96	2.3	1.5
	13	3.61	20	60.3	1.17
	15	4.17	19	63.2	1.23
50WTP13-24/2	9	2.5	25	51.1	1.2		1.5
	13	3.61	24	58.1	1.46
	15	4.17	21	62.2	1.38
50WTP13-28/2	9	2.5	29	49	1.45		2.2
	13	3.61	28	56	1.77
	15	4.17	26	59.4	1.79
50WTP13-32/2	9	2.5	33	47.1	1.72		2.2
	13	3.61	32	54.2	2.09
	15	4.17	30	57.6	2.13
50WTP13-36/2	9	2.5	37	45.5	1.99		3
	13	3.61	36	52.5	2.43
	15	4.17	34	56.3	2.47
50WTP13-44/2	9	2.5	45	39.7	2.78		4
	13	3.61	44	50.3	3.1
	15	4.17	42	53.4	3.21
50WTP13-50/2	9	2.5	51	37.8	3.31		4
	13	3.61	50	47.2	3.75
	15	4.17	49	50.9	3.93
50WTP13-60/2	9	2.5	61	36	4.15		5.5
	13	3.61	60	41.3	5.14
	15	4.17	56	48.4	4.73
50WTP13-70/2	9	2.5	72	33.4	5.28		7.5
	13	3.61	70	40.8	6.07
	15	4.17	64	44.1	5.93
50WTP13-80/2	9	2.5	82	30.8	6.53		7.5
	13	3.61	80	39.1	7.24
	15	4.17	77	42.1	7.47
50WTP25-16/2	18	5	17	66.4	1.26		2.2
	25	6.94	16	70.4	1.55	2.5
	30	8.33	14	72	1.59
50WTP25-20/2	18	5	22	64.3	1.68		2.2
	25	6.94	20	69.4	1.96
	30	8.33	18	71.5	2.06
50WTP25-24/2	18	5	25	62.9	1.95		3
	25	6.94	24	68.1	2.4
	30	8.33	22	70.5	2.55
50WTP25-28/2	18	5	30	60.4	2.43		3
	25	6.94	28	66.7	2.86
	30	8.33	24	69.9	2.81
50WTP25-32/2	18	5	34	59.2	2.82		4
	25	6.94	32	65.3	3.34
	30	8.33	30	68.2	3.59
50WTP25-38/2	18	5	40	57.2	3.43		5.5
	25	6.94	38	62.8	4.12
	30	8.33	34	66.8	4.16
50WTP25-44/2	18	5	46	55.1	4.09		5.5
	25	6.94	44	61.3	4.89
	30	8.33	40	64.8	5.04
50WTP25-50/2	18	5	53	52.8	4.92		7.5
	25	6.94	50	59.6	5.71
	30	8.33	46	63	5.97
50WTP25-60/2	18	5	62	49.8	6.1		11
	25	6.94	60	56.6	7.22
	30	8.33	57	59.9	7.77
50WTP25-70/2	18	5	72	45.4	7.77		11
	25	6.94	70	54.6	8.73
	30	8.33	68	57.7	9.63
50WTP25-80/2	18	5	82	43.6	9.22		15
	25	6.94	80	50.7	10.7
	30	8.33	78	55.7	11.4
65WTP25-16/2	18	5	17	66.4	1.26	2.5	2.2
	25	6.94	16	70.4	1.55
	30	8.33	14	72	1.59
65WTP25-20/2	18	5	22	64.3	1.68	2.5	2.2
	25	6.94	20	69.2	1.97
	30	8.33	18	71.5	2.06
65WTP25-24/2	18	5	25	62.9	1.95	2.5	3
	25	6.94	24	67.8	2.41
	30	8.33	22	70.5	2.55
65WTP25-28/2	18	5	30	60.4	2.43	2.5	3
	25	6.94	28	66.3	2.88
	30	8.33	24	69.9	2.81
65WTP25-32/2	18	5	34	59.2	2.82	2.5	4
	25	6.94	32	65.1	3.35
	30	8.33	30	68.2	3.59
65WTP25-36/2	18	5	40	57.2	3.43	2.5	5.5
	25	6.94	38	62.8	4.12
	30	8.33	34	66.8	4.16
65WTP25-44/2	18	5	46	55.1	4.09	2.5	5.5
	25	6.94	44	61	4.91
	30	8.33	40	64.8	5.04
65WTP25-50/2	18	5	53	52.8	4.92	2.5	7.5
	25	6.94	50	59.2	5.75
	30	8.33	46	63	5.97
65WTP25-60/2	18	5	62	49.8	6.1	2.5	11
	25	6.94	60	56.6	7.22
	30	8.33	57	60.3	7.72
65WTP25-70/2	18	5	72	45.4	7.77	2.5	11
	25	6.94	70	54.6	8.73
	30	8.33	66	57.7	9.35
65WTP25-80/2	18	5	82	43.6	9.22	2.5	15
	25	6.94	80	50.7	10.7
	30	8.33	78	55.7	11.4
65WTP35-16/2	24	6.67	17	69.8	1.59	2.5	2.2
	35	9.72	16	73.1	2.09
	42	11.7	14	74	2.16
65WTP35-20/2	24	6.67	21.5	68.4	2.05		3
	35	9.72	20	72.8	2.62	2.5
	42	11.7	19	74	2.94
65WTP35-24/2	24	6.67	26	66.6	2.55		4
	35	9.72	24	71.6	3.19
	42	11.7	22	73.7	3.41
65WTP35-28/2	24	6.67	30	65.2	3.01		5.5
	35	9.72	28	70.9	3.76
	42	11.7	27	72.8	4.24
65WTP35-32/2	24	6.67	35	63.4	3.61		5.5
	35	9.72	32	69.4	4.39
	42	11.7	30	72	4.77
65WTP35-36/2	24	6.67	40	61.6	4.24		5.5
	35	9.72	36	68.3	5.02
	42	11.7	33	71.4	5.29
65WTP35-44/2	24	6.67	46	59.7	5.04		7.5
	35	9.72	44	66	6.35
	42	11.7	40	69.6	6.57
65WTP35-50/2	24	6.67	53	57.7	6		11
	35	9.72	50	64.2	7.42
	42	11.7	48	67.4	8.15
65WTP35-60/2	24	6.67	62	55.9	7.25		11
	35	9.72	60	62	9.22
	42	11.7	57	65.3	9.98
65WTP35-70/2	24	6.67	72	53.3	8.83		15
	35	9.72	70	60	11.1
	42	11.7	67	63.1	12.1
65WTP35-80/2	24	6.67	82	48.9	11		15
	35	9.72	80	57.7	13.2
	42	11.7	77	61.1	14.4
65WTP50-16/2	35	9.72	17	72.9	2.22		3
	50	13.9	16	74.9	2.91
	60	16.7	14	76.5	2.99
65WTP50-20/2	35	9.72	22	72.1	2.91		4
	50	13.9	20	74.9	3.64
	60	16.7	18	75.8	3.88
65WTP50-24/2	35	9.72	26	71.1	3.49		5.5
	50	13.9	24	74.7	4.37	3
	60	16.7	21	75.8	4.53
65WTP50-28/2	35	9.72	31	69.7	4.24		5.5
	50	13.9	28	74.1	5.15
	60	16.7	24	75.8	5.17
65WTP50-32/2	35	9.72	35	68.5	4.87		7.5
	50	13.9	32	73.3	5.94
	60	16.7	29	75.2	6.3
65WTP50-36/2	35	9.72	40	67.1	5.68		7.5
	50	13.9	36	72.5	6.76
	60	16.7	32	75	6.97
65WTP50-44/2	35	9.72	47	65.1	6.88		11
	50	13.9	44	70.7	8.47
	60	16.7	40	73.5	8.89
65WTP50-50/2	35	9.72	53	63.6	7.94		11
	50	13.9	50	69.3	9.82
	60	16.7	47	72.1	10.7
65WTP50-60/2	35	9.72	62	61.6	9.59		15
	50	13.9	60	67.1	12.2
	60	16.7	57	70.2	13.3
65WTP50-70/2	35	9.72	73	59.1	11.8		18.5
	50	13.9	70	65	14.7
	60	16.7	67	68	16.1
65WTP50-80/2	35	9.72	83	57.2	13.8		22
	50	13.9	80	63.2	17.2
	60	16.7	77	66.2	19
65WTP18-16/4	14	3.89	17	51.3	1.26		1.5
	18	5	16	56.8	1.38	2.5
	21	5.83	15	60.1	1.43
65WTP18-20/4	14	3.89	21	47.8	1.68		2.2
	18	5	20	53.8	1.82
	21	5.83	19	56.8	1.91
65WTP18-24/4	14	3.89	25	42	2.27		3
	18	5	24	51.2	2.3
	21	5.83	23	54	2.44
65WTP18-28/4	14	3.89	29	41.2	2.68		4
	18	5	28	45.4	3.02
	21	5.83	26	52.4	2.84
65WTP18-32/4	14	3.89	33	39.8	3.16		4
	18	5	32	43.6	3.6
	21	5.83	31	46.6	3.8
65WTP25-16/4	15	4.17	17	52.9	1.31		2.2
	25	6.94	16	62.2	1.75	3
	30	8.33	14	66.4	1.72
65WTP25-20/4	15	4.17	21	49.9	1.72		3
	25	6.94	20	59.6	2.28
	30	8.33	19	62.4	2.49
65WTP25-24/4	15	4.17	25	44.1	2.32		3
	25	6.94	24	56.6	2.89
	30	8.33	21	61.1	2.81
65WTP25-28/4	15	4.17	29	42.2	2.81		4
	25	6.94	28	54.6	3.49
	30	8.33	26	58.6	3.62
65WTP25-32/4	15	4.17	33	41.7	3.23		5.5
	25	6.94	32	50.7	4.3
	30	8.33	31	56.3	4.5
65WTP25-38/4	15	4.17	39	37.8	4.21		7.5
	25	6.94	38	46.1	5.61
	30	8.33	36	53.5	5.5
65WTP25-44/4	15	4.17	45	35.2	5.22		7.5
	25	6.94	44	45.6	6.57
	30	8.33	42	47.4	7.24
65WTP25-50/4	15	4.17	52	35.2	6.03		11
	25	6.94	50	44.1	7.72
	30	8.33	47	46.9	8.19
80WTP50-16/2	35	9.72	17	72.9	2.22		3
	50	13.9	16	74.9	2.91
	60	16.7	14	75.8	3.02
80WTP50-20/2	35	9.72	22	72.1	2.91		4
	50	13.9	20	74.9	3.64
	60	16.7	18	75.8	3.88
80WTP50-24/2	35	9.72	26	71.1	3.49		5.5
	50	13.9	24	74.7	4.37
	60	16.7	21	75.8	4.53
80WTP50-28/2	35	9.72	30	70	4.08		5.5
	50	13.9	28	74.1	5.15
	60	16.7	24	75.8	5.17
80WTP50-32/2	35	9.72	35	68.5	4.87		7.5
	50	13.9	32	73.3	5.94
	60	16.7	29	75.2	6.3
80WTP50-38/2	35	9.72	40	67.1	5.68		7.5
	50	13.9	38	72.1	7.18
	60	16.7	34	74.6	7.45
80WTP50-44/2	35	9.72	47	65.1	6.88		11
	50	13.9	44	70.7	8.47
	60	16.7	42	73.2	9.38
80WTP50-50/2	35	9.72	54	63.6	8.09		11
	50	13.9	50	69.3	9.82
	60	16.7	46	72.1	10.4
80WTP50-60/2	35	9.72	62	61.6	9.59		15
	50	13.9	60	66.8	12.2
	60	16.7	54	70.2	12.6
80WTP50-70/2	35	9.72	73	59.1	11.8		18.5
	50	13.9	70	65	14.7
	60	16.7	67	68	16.1
80WTP50-80/2	35	9.72	83	57.2	13.8		22
	50	13.9	80	63.2	17.2
	60	16.7	77	66.2	19
80WTP72-16/2	54	15	17	75.3	3.32		5.5
	72	20	16	76.6	4.1
	90	25	15	77.2	4.76
80WTP72-20/2	54	15	22	75.3	4.3		7.5
	72	20	20	76.6	5.12
	90	25	18	77.6	5.69
80WTP72-24/2	54	15	26	75	5.1		7.5
	72	20	24	76.6	6.14
	90	25	22	77.6	6.95
80WTP72-28/2	54	15	31	74.3	6.14	11
	72	20	28	76.6	7.17
	90	25	26	77.6	8.21
80WTP72-32/2	54	15	35	73.4	7.01	11
	72	20	32	76.2	8.23
	90	25	30	77.6	9.48
80WTP72-38/2	54	15	41	77.2	7.81	11
	72	20	38	75.5	9.87
	90	25	34	77.6	10.7
80WTP72-44/2	54	15	46	74	9.14	15
	72	20	44	74.5	11.6
	90	25	38	77.1	12.1
80WTP72-50/2	54	15	54	69.5	11.4	15
	72	20	50	73.5	13.3
	90	25	45	76.3	14.5
80WTP72-60/2	54	15	63	67.5	13.7	18.5
	72	20	60	71.8	16.4
	90	25	56	74.8	18.3
80WTP100-16/2	70	19.4	17	76.5	4.24	7.5
	100	27.8	16	77.6	5.62		2.5
	120	33.3	15	76.8	5.96
80WTP100-20/2	70	19.4	22	76.5	5.48	7.5
	100	27.8	20	78	6.98
	120	33.3	17	77.9	7.13
80WTP100-24/2	70	19.4	26	76.5	6.48	11
	100	27.8	24	78	8.38		4.5
	120	33.3	22	78.7	9.14
80WTP100-28/2	70	19.4	31	76.2	7.76	15
	100	27.8	28	78	9.78
	120	33.3	26	78.7	10.8
80WTP100-32/2	70	19.4	36	75.7	9.07	15
	100	27.8	32	78	11.2
	120	33.3	30	78.7	12.5
80WTP100-38/2	70	19.4	41	74.7	10.5	15
	100	27.8	38	77.8	13.3		4
	120	33.3	35	78.7	14.5
80WTP100-44/2	70	19.4	47	73.9	12.1	18.5
	100	27.8	44	77.2	15.5
	120	33.3	41	78.7	17
80WTP100-50/2	70	19.4	54	72.5	14.2	22
	100	27.8	50	76.5	17.8
	120	33.3	46	78.3	19.2
80WTP100-60/2	70	19.4	65	70.7	17.5	30
	100	27.8	60	75.2	21.7
	120	33.3	56	77.3	23.7
80WTP100-70/2	70	19.4	76	68.4	21.2	30
	100	27.8	70	73.8	25.8
	120	33.3	66	76.2	28.3
80WTP100-80/2	70	19.4	87	66.9	24.8	37
	100	27.8	80	72.4	30.1
	120	33.3	75	75	32.7
80WTP30-16/4	22	6.11	17	59.1	1.72	2.2
	30	8.33	16	64.5	2.03		3
	36	10	14	68.7	2
80WTP30-20/4	22	6.11	21	56.2	2.24	3
	30	8.33	20	61.8	2.64
	36	10	19	65	2.87
80WTP30-24/4	22	6.11	25	53.7	2.79	4
	30	8.33	24	59.5	3.3
	36	10	23	62.6	3.6
80WTP30-28/4	22	6.11	29	51.2	3.39	5.5
	30	8.33	28	57.7	3.96
	36	10	26	61.4	4.15
80WTP30-32/4	22	6.11	33	46.9	4.22	5.5
	30	8.33	32	55.7	4.69
	36	10	30	59.3	4.96
80WTP50-16/4	35	9.72	17	66	2.46	4
	50	13.9	16	71.4	3.05		4
	60	16.7	14	74.4	3.07
80WTP50-20/4	35	9.72	22	62.7	3.34	5.5
	50	13.9	20	69.1	3.94
	60	16.7	18	72.6	4.05
80WTP50-24/4	35	9.72	25	61.6	3.87	5.5
	50	13.9	24	67.1	4.87
	60	16.7	22	70.6	5.09
80WTP50-28/4	35	9.72	30	59.1	4.84	7.5
	50	13.9	28	65	5.87
	60	16.7	26	68.6	6.19
80WTP50-32/4	35	9.72	34	57.2	5.67	7.5
	50	13.9	32	63.2	6.89
	60	16.7	30	66.5	7.37
80WTP50-38/4	35	9.72	40	52.7	7.23	11
	50	13.9	38	61.1	8.47
	60	16.7	35	64.5	8.87
80WTP50-44/4	35	9.72	46	48.3	9.08	11
	50	13.9	44	58.6	10.2
	60	16.7	41	62.4	10.7
80WTP50-50/4	35	9.72	53	47.8	10.6	15
	50	13.9	50	56.1	12.1
	60	16.7	47	60.6	12.7
100WTP100-15/2	70	19.4	18	76.5	4.49	5.5
	100	27.8	15	77.3	5.28		4.5
	120	33.3	11	75.2	4.78
100WTP100-20/2	70	19.4	23	76.5	5.73	7.5
	100	27.8	20	78	6.98
	120	33.3	17	77.9	7.13
100WTP100-24/2	70	19.4	27	76.5	6.73	11
	100	27.8	24	78	8.38
	120	33.3	20	78.7	8.3
100WTP100-28/2	70	19.4	32	76	8.03	11
	100	27.8	28	78	9.78
	120	33.3	24	78.7	9.97
100WTP100-32/2	70	19.4	36	75.5	9.09	15
	100	27.8	32	78	11.2
	120	33.3	28	78.7	11.6
100WTP100-38/2	70	19.4	41	74.7	10.5	15
	100	27.8	38	77.8	13.3		4
	120	33.3	35	78.7	14.5
100WTP100-44/2	70	19.4	48	73.6	12.4	18.5
	100	27.8	44	77.2	15.5
	120	33.3	40	78.7	16.6
100WTP100-50/2	70	19.4	54	72.5	14.2	22
	100	27.8	50	76.5	17.8
	120	33.3	47	78.2	19.6
100WTP100-60/2	70	19.4	65	70.5	17.6	30
	100	27.8	60	75.2	21.7
	120	33.3	57	77.2	24.1
100WTP100-70/2	70	19.4	76	68.4	21.2	30
	100	27.8	70	73.8	25.8
	120	33.3	65	76.3	27.8
100WTP100-80/2	70	19.4	87	66.8	24.8	37
	100	27.8	80	72.4	30.1
	120	33.3	75	75	32.7
100WTP50-16/4	35	9.72	17	66	2.46	4
	50	13.9	16	71.4	3.05
	60	16.7	15	73.8	3.32
100WTP50-20/4	35	9.72	22	62.7	3.34	5.5
	50	13.9	20	69.3	3.93
	60	16.7	17	72.9	3.81
100WTP50-24/4	35	9.72	25	59.5	4	5.5
	50	13.9	24	67.1	4.87
	60	16.7	22	70.6	5.09
100WTP50-28/4	35	9.72	29	59.6	4.64	7.5
	50	13.9	28	65	5.87
	60	16.7	26	68.6	6.19
100WTP50-32/4	35	9.72	33	57.7	5.45	7.5
	50	13.9	32	63.2	6.89
	60	16.7	29	67.1	7.06
100WTP100-16/4	70	19.4	17	74.7	4.34	7.5
	100	27.8	16	77.7	5.61		2.8
	120	33.3	14	78.7	5.81
100WTP100-20/4	70	19.4	22	72.3	5.8	7.5
	100	27.8	20	76.5	7.12		2.5
	120	33.3	18	78.9	7.46
100WTP100-24/4	70	19.4	25	70.9	6.72	11
	100	27.8	24	75.2	8.69
	120	33.3	22	77.4	9.29
100WTP100-28/4	70	19.4	29	69	8.01	11
	100	27.8	28	73.8	10.3
	120	33.3	26	76.3	11.1
100WTP100-32/4	70	19.4	34	66.9	9.69	15
	100	27.8	32	72.4	12
	120	33.3	30	75	13.1
100WTP100-38/4	70	19.4	40	64.8	11.8	18.5
	100	27.8	38	70.2	14.7		3
	120	33.3	35	73.5	15.6
100WTP100-44/4	70	19.4	46	63.1	13.9	18.5
	100	27.8	44	68.4	17.5
	120	33.3	40	71.8	18.2
100WTP100-50/4	70	19.4	53	60.8	16.6	22
	100	27.8	50	66.7	20.4
	120	33.3	46	70	21.5
125WTP160-16/2	112	31.1	17	77.9	6.66	11
	160	44.4	16	77.7	8.97		4
	192	53.3	15	77.6	10.1
125WTP160-20/2	112	31.1	23	78.4	8.95	15
	160	44.4	20	79.1	11		4.5
	192	53.3	18	78.3	12
125WTP160-24/2	100	27.8	26	78.4	9.03	15
	160	44.4	24	80	13.1		4
	192	53.3	22	79.5	14.5
125WTP160-28/2	112	31.1	32	78.4	12.4	18.5
	160	44.4	28	80	15.3
	192	53.3	24	79.5	15.8
125WTP160-32/2	112	31.1	36	78.4	14	18.5
	160	44.4	32	80	17.4
	192	53.3	28	80	18.3
125WTP160-38/2	112	31.1	42	78.4	16.3	22
	160	44.4	38	80	20.7
	192	53.3	34	80.6	22.1
125WTP160-44/2	112	31.1	48	77.6	18.9	30
	160	44.4	44	80	24
	192	53.3	41	80.6	26.6
125WTP160-50/2	112	31.1	55	78.6	21.3	30
	160	44.4	50	80	27.2
	192	53.3	46	80.6	29.8
125WTP160-60/2	112	31.1	66	75.5	26.7	37
	160	44.4	60	79.2	33
	192	53.3	55	80.6	35.7
125WTP160-70/2	112	31.1	76	74.2	31.2	45
	160	44.4	70	78.4	38.9
	192	53.3	64	80.1	41.8
125WTP160-80/2	112	31.1	87	72.8	36.5	55
	160	44.4	80	77.5	45
	192	53.3	73	79.6	48
125WTP80-16/4	56	15.6	18	71.8	3.82	5.5
	80	22.2	16	76	4.59		2.8
	96	26.7	15	77.6	5.05
125WTP80-20/4	56	15.6	23	69.6	5.04	7.5
	80	22.2	20	74.5	5.85
	96	26.7	18	76.9	6.12
125WTP80-24/4	56	15.6	25	67.9	5.62	7.5
	80	22.2	24	72.8	7.18		2.5
	96	26.7	21	75.8	7.24
125WTP80-28/4	56	15.6	29	66.1	6.69	11
	80	22.2	28	71.2	8.57
	96	26.7	26	74.2	9.16
125WTP80-32/4	56	15.6	35	63.7	8.38	11
	80	22.2	32	69.5	10
	96	26.7	30	72.6	10.8
125WTP120-16/4	84	23.3	17	76.1	5.11	7.5
	120	33.3	16	78.7	6.64		3
	144	40	14	79.6	6.9
125WTP120-20/4	84	23.3	22	74.2	6.78	11
	120	33.3	20	77.9	8.39
	144	40	18	79.6	8.87
125WTP120-24/4	84	23.3	26	72.6	8.19	11
	120	33.3	24	76.8	10.2
	144	40	22	78.9	10.9
125WTP120-28/4	84	23.3	30	70.9	9.68	15
	120	33.3	28	75.7	12.1
	144	40	26	78	13.1
125WTP120-32/4	84	23.3	35	68.8	11.6	15
	120	33.3	32	74.3	14.1
	144	40	29	77.2	14.7
125WTP120-38/4	84	23.3	39	67.3	13.3	18.5
	120	33.3	38	72.4	17.2
	144	40	36	75.6	18.7
125WTP120-44/4	84	23.3	46	65.5	16.1	22
	120	33.3	44	70.6	20.4
	144	40	41	74	21.7
125WTP120-50/4	84	23.3	53	63.4	19.1	30
	120	33.3	50	68.8	23.7
	144	40	47	72.1	25.6
125WTP160-16/4	112	31.1	17	78.1	6.64	11
	160	44.4	16	80	8.71		3.5
	192	53.3	14	80.6	9.08
125WTP160-20/4	112	31.1	22	76.8	8.74	15
	160	44.4	20	80	10.9
	192	53.3	18	80.6	11.7
125WTP160-24/4	112	31.1	25	75.7	10.1	15
	160	44.4	24	79.2	13.2
	192	53.3	22	80.6	14.3
125WTP160-28/4	112	31.1	30	74	12.4	18.5
	160	44.4	28	78.4	15.6
	192	53.3	26	80	17
125WTP160-32/4	112	31.1	34	73	14.2	22
	160	44.4	32	77.5	18
	192	53.3	30	79.3	19.8
125WTP160-38/4	112	31.1	40	70.9	17.2	30
	160	44.4	38	75.8	21.8
	192	53.3	36	78.1	24.1
125WTP160-44/4	112	31.1	46	69.1	20.3	30
	160	44.4	44	74.4	25.8
	192	53.3	41	77	27.8
125WTP160-50/4	112	31.1	52	67.5	23.5	37
	160	44.4	50	72.8	29.9
	192	53.3	47	75.8	32.4
150WTP200-16/2	140	38.9	18	74.8	9.17	15
	200	55.6	16	77.8	11.2		5
	240	66.7	14	78.3	11.7
150WTP200-20/2	140	38.9	23	79.4	11	15
	200	55.6	20	79	13.8
	240	66.7	17	78.3	14.2
150WTP200-24/2	140	38.9	27	79.4	13	18.5
	200	55.6	24	80	16.3
	240	66.7	21	79	17.4
150WTP200-28/2	140	38.9	32	79.4	15.4	22
	200	55.6	28	80.8	18.9
	240	66.7	24	80.1	19.6
150WTP200-32/2	140	38.9	35	79.4	16.8	30
	200	55.6	32	80.8	21.6
	240	66.7	30	81.1	24.2
150WTP200-38/2	140	38.9	42	79.4	20.2	30
	200	55.6	38	80.8	25.6
	240	66.7	35	81.3	28.1
150WTP200-44/2	140	38.9	48	79.6	23	37
	200	55.6	44	80.8	29.7
	240	66.7	40	81.3	32.2
150WTP200-50/2	140	38.9	55	78.7	26.6	37
	200	55.6	50	80.8	33.7
	240	145	45	81.3	36.2
150WTP200-60/2	140	38.9	66	77.6	32.4	45
	200	55.6	60	80.7	40.5
	240	66.7	55	81.3	44.2
150WTP200-70/2	140	38.9	76	76.5	37.9	55
	200	55.6	70	80	47.7
	240	66.7	64	81.3	51.5
150WTP200-80/2	140	38.9	87	75.4	44	75
	200	55.6	80	79.3	54.9
	240	66.7	75	80.7	60.7
150WTP200-16/4	140	38.9	17	79.4	8.16	15
	200	55.6	16	80.8	10.8		3
	240	66.7	14	81.3	11.3
150WTP200-20/4	140	38.9	22	78.7	10.7	15
	200	55.6	20	80.8	13.5
	240	66.7	18	81.3	14.5
150WTP200-24/4	140	38.9	25	77.9	12.2	18.5
	200	55.6	24	80.6	16.2		3.5
	240	66.7	21	81.3	16.9
150WTP200-28/4	140	38.9	30	76.7	14.9	22
	200	55.6	28	80	19.1
	240	66.7	25	81.3	20.1
150WTP200-32/4	140	38.9	34	75.6	17.1	30
	200	55.6	32	79.3	22
	240	66.7	29	80.9	23.4
150WTP200-38/4	140	38.9	40	73.8	20.7	30
	200	55.6	38	78	26.5
	240	66.7	35	80	28.6
150WTP200-44/4	140	38.9	47	71.6	25	37
	200	55.6	44	76.8	31.2
	240	66.7	38	79.4	31.3
150WTP200-50/4	140	38.9	53	70.1	28.8	45
	200	55.6	50	75.4	36.1
	240	66.7	46	77.9	38.6
200WTP200-16/4	140	38.9	17	79.4	8.16	15
	200	55.6	16	80.8	10.8		3
	240	66.7	14	81.3	11.3
200WTP200-20/4	140	38.9	22	78.7	10.7	15
	200	55.6	20	80.8	13.5
	240	66.7	18	81.3	14.5
200WTP200-24/4	140	38.9	25	77.9	12.2	18.5
	200	55.6	24	80.6	16.2		3.5
	240	66.7	21	81.3	16.9
200WTP200-28/4	140	38.9	30	76.7	14.9	22
	200	55.6	28	80	19.1
	240	66.7	25	81.3	20.1
200WTP200-32/4	140	38.9	34	75.6	17.1	30
	200	55.6	32	79.3	22
	240	66.7	29	80.9	23.4
200WTP200-38/4	140	38.9	40	73.8	20.7	30
	200	55.6	38	78	26.5		4.5
	240	66.7	35	80	28.6
200WTP200-44/4	140	38.9	47	71.6	25	37
	200	55.6	44	76.8	31.2
	240	66.7	38	79.4	31.3
200WTP200-50/4	140	38.9	53	70.1	28.8	45
	200	55.6	50	75.4	36.1
	240	66.7	46	77.9	38.6
200WTP200-60/4	140	38.9	64	67.7	36	55
	200	55.6	60	73	44.8
	240	66.7	56	75.9	48.2
200WTP200-70/4	145	40.3	72	65.6	43.3	75
	200	55.6	70	71.2	53.5
	240	66.7	65	74.1	57.3
200WTP200-80/4	140	38.9	85	63.1	51.4	75
	200	55.6	80	69.5	62.7
	240	66.7	75	72.3	67.8
200WTP300-16/4	220	61.1	18	80.9	13.3	18.5
	300	83.3	16	82	15.9		4
	360	100	14	81.7	16.8
200WTP300-20/4	220	61.1	23	80.9	17	22
	300	83.3	20	82	19.9
	360	100	18	82.6	21.4
200WTP300-24/4	220	61.1	27	80.4	20.1	30
	300	83.3	24	82	23.9
	360	100	22	82.6	26.1
200WTP300-28/4	220	61.1	31	79.8	23.3	30
	300	83.3	28	82	27.9
	360	100	24	82.6	28.5
200WTP300-32/4	210	58.3	36	78.8	26.1	37
	300	83.3	32	81.8	32
	360	100	29	82.6	34.4
200WTP300-38/4	220	61.1	41	77.9	31.5	45
	300	83.3	38	81.1	38.3
	360	100	33	82.6	39.2
200WTP300-44/4	220	61.1	48	76.3	37.7	55
	300	83.3	44	80.6	44.6
	360	100	37	82.3	44.1
200WTP300-50/4	220	61.1	54	74.9	43.2	55
	300	83.3	50	79.2	51.6
	360	100	45	81.4	54.2
200WTP300-60/4	220	61.1	64	72.8	52.7	75
	300	83.3	60	77.4	63.3		4.5
	360	100	54	80.2	66
200WTP300-70/4	220	61.1	74	71	62.4	90
	300	83.3	70	76.9	74.4
	360	100	64	78.6	79.8
200WTP300-80/4	220	61.1	85	69.2	73.6	110
	300	83.3	80	73.9	88.4
	360	100	74	77.2	94
200WTP360-14/4	252	70	16	81.5	13.6	18.5
	360	100	14	82	16.7		4
	432	120	12	80.6	17.5
200WTP400-20/4	280	77.8	22	81.9	20.5	30
	400	111.1	20	83	26.2		5
	480	133.3	18	83	28.3
200WTP400-24/4	280	77.8	27	81.9	25.1	37
	400	111.1	24	83	31.5		4
	480	133.3	21	83.5	32.9
200WTP400-28/4	280	77.8	32	81.5	29.9	37
	400	111.1	28	83	36.7
	480	133.3	23	83.5	36
200WTP400-32/4	280	77.8	36	80.9	33.9	45
	400	111.1	32	83	42
	480	133.3	28	83.6	43.8
200WTP360-37/4	252	70	42	79.4	36.3	45
	360	100	37	82.3	44.1		5
	432	120	32	83.2	45.2
200WTP380-40/4	266	73.9	45	79.1	41.2	55
	380	105.6	40	82.3	50.3
	456	126.7	33	83.4	49.1
200WTP380-43/4	266	73.9	48	78.6	44.2	55
	380	105.6	43	82	51.4
	456	126.7	36	83.4	53.6
200WTP400-50/4	280	77.8	54	78	52.8	75
	400	111.1	50	81.6	66.7
	480	133.3	45	83.3	70.6
200WTP360-60/4	252	70	64	74.9	58.6	90
	360	100	60	79.4	74.1		4
	432	120	53	82.5	75.6
200WTP380-70/4	266	73.9	74	73.7	72.7	110
	380	105.6	70	78.4	92.4
	456	126.7	63	81.4	96.1
200WTP400-80/4	280	77.8	85	72.6	89.3	132
	400	111.1	80	78.9	110.5
	480	133.3	72	80.4	117.1
250WTP500-16/4	350	97.2	18	82.6	20.8	30
	500	138.9	16	82.3	26.5		5.5
	600	166.7	14	81.2	28.2
250WTP500-20/4	350	97.2	22	82.6	25.4	37
	500	138.9	20	83.6	32.6
	600	166.7	18	82.8	35.5
250WTP480-23/4	336	93.3	25	82.4	27.8	37
	480	133.3	23	83.7	35.9
	576	160	21	84	39.2
250WTP500-27/4	350	97.2	30	82.6	34.6	45
	500	138.9	27	83.7	43.9
	600	166.7	22	84.2	42.7
250WTP500-32/4	350	97.2	35	82.4	40.5	55
	500	138.9	32	83.7	52.1
	600	166.7	28	84.2	54.3
250WTP500-38/4	350	97.2	41	81.7	47.8	75
	500	138.9	38	83.7	61.8
	600	166.7	35	84.2	67.9
250WTP500-44/4	350	97.2	48	80.9	56.6	75
	500	138.9	44	83.6	71.7
	600	166.7	38	84.2	73.7
250WTP500-50/4	350	97.2	54	80	64.3	90
	500	138.9	50	83	82
	600	166.7	45	84.2	87.3
250WTP500-60/4	350	97.2	65	78.3	79.1	110
	500	138.9	60	82	99.6
	600	166.7	55	83.6	107.5
250WTP500-70/4	350	97.2	74	76.9	91.7	132
	500	138.9	70	80.9	117.8
	600	166.7	65	82.8	128.3
250WTP500-80/4	350	97.2	84	75.3	106.3	160
	500	138.9	80	79.7	136.7
	600	166.7	75	81.9	149.6
250WTP650-16/4	455	126.4	18	83.1	26.8	37
	650	180.6	16	82	34.5		7
	780	216.7	14	81.9	36.3
250WTP650-20/4	455	126.4	22	83.4	32.7	45
	650	180.6	20	83.3	42.5
	780	216.7	17	81.9	44.1
250WTP650-24/4	455	126.4	27	83.4	40.1	55
	650	180.6	24	84.4	50.3		6.5
	780	216.7	21	83.4	53.5
250WTP650-28/4	455	126.4	30	83.4	44.6	75
	650	180.6	28	84.4	58.7
	780	216.7	25	84.5	62.8
250WTP650-32/4	455	126.4	36	83.4	53.5	75
	650	180.6	32	84.4	67.1		6
	780	216.7	28	84.9	70.1
250WTP650-36/4	455	126.4	38	83.4	56.5	90
	650	180.6	36	84.4	75.5
	780	216.7	32	84.9	80.1
250WTP650-40/4	455	126.4	44	83	65.7	90
	650	180.6	40	84.4	83.9
	780	216.7	33	84.9	82.6
250WTP650-45/4	455	126.4	50	82.4	75.2	110
	650	180.6	45	84.4	94.4
	780	216.7	41	84.9	102.6
250WTP650-50/4	455	126.4	54	82	81.6	132
	650	180.6	50	84.4	104.9		5.5
	780	216.7	46	84.9	115.1
250WTP650-56/4	455	126.4	59	81.5	89.7	132
	650	180.6	56	84	118
	780	216.7	47	84.9	117.6
250WTP650-65/4	455	126.4	68	80.4	104.8	160
	650	180.6	65	83.4	138
	780	216.7	61	84.7	153
250WTP650-72/4	455	126.4	75	79.4	117	185
	650	180.6	72	82.8	153.9		5.2
	780	216.7	68	84.2	171.5
250WTP650-80/4	455	126.4	85	78.1	134.9	200
	650	180.6	80	82	172.7
	780	216.7	73	83.9	184.8
300WTP720-16/4	504	140	18	83	29.8	45
	720	200	16	81.8	38.4		7.5
	864	240	14	82.2	40.1
300WTP720-20/4	504	140	22	83.7	36.1	55
	720	200	20	83.3	47.1
	864	240	18	82.2	51.5
300WTP720-24/4	504	140	27	83.7	44.3	75
	720	200	24	84.3	55.8		7
	864	240	20	83	56.7
300WTP720-28/4	504	140	31	83.7	50.8	75
	720	200	28	84.8	64.7
	864	240	23	84.3	64.2
300WTP720-32/4	504	140	35	83.7	57.4	90
	720	200	32	84.8	74
	864	240	28	85	77.5
300WTP700-38/4	490	136.1	41	83.6	65.4	90
	700	194.4	38	84.7	85.5		6.5
	840	233.3	32	85.1	86
300WTP720-44/4	504	140	47	83.3	77.4	110
	720	200	44	84.8	101.7
	864	240	36	85.2	99.4
300WTP720-50/4	504	140	54	82.7	89.6	132
	720	200	50	84.7	115.7
	864	240	44	85.2	121.5
300WTP720-60/4	504	140	64	81.7	107.5	160
	720	200	60	84.3	139.6		6
	864	240	52	85.2	143.6
300WTP720-70/4	504	140	74	80.5	126.2	185
	720	200	70	83.6	164.2
	864	240	61	85.2	168.5
300WTP720-80/4	504	140	85	79.2	147.3	200
	720	200	80	82.8	189.4
	864	240	70	84.6	194.7
300WTP1000-16/4	700	194.4	18	82.7	41.5
	1000	277.8	16	82.6	52.8	5.1	55
	1200	333.3	14	83.1	55.1
300WTP1000-18/4	700	194.4	20	83.2	45.8
	1000	277.8	18	82.7	59.3	5.3	75
	1200	333.3	16	83.1	62.9
300WTP1000-20/4	700	194.4	23	84.1	52.1
	1000	277.8	20	82.6	65.9	5.5	75
	1200	333.3	18	83.1	70.8
300WTP1000-24/4	700	194.4	26	84.6	58.6
	1000	277.8	24	83.9	77.9	4.6	90
	1200	333.3	22	83.1	86.5
300WTP950-27/4	665	184.7	31	84.5	66.4
	950	263.9	27	84.8	82.4	4.8	90
	1140	326.7	24	83.7	89
300WTP1000-32/4	700	194.4	36	84.6	81.1
	1000	277.8	32	85.6	101.8	6.5	110
	1200	333.3	28	84.5	108.3	6.5
300WTP1200-32/4	840	233.3	35	85.3	93.9	6.5	132
	1200	333.3	32	85.3	122.6
	1440	400	28	83.4	114.3
300WTP1000-38/4	700	194.4	42	84.6	94.6
	1000	277.8	38	85.7	120.8	3.9	132
	1200	333.3	33	85.5	126.1
300WTP1000-45/4	700	194.4	48	84.6	108.2
	1000	277.8	45	85.7	143	8	160
	1200	333.3	40	86.1	151.8
300WTP1000-50/4	700	194.4	55	84.5	124.1
	1000	277.8	50	85.7	158.9	8	185
	1200	333.3	42	86.1	159.4
350WTP1200-38/4	840	233.3	41	85.3	110		160
	1200	333.3	38	85.3	145.6	6.5
	1440	388.9	31	84.3	143.4
350WTP1200-50/4	840	233.3	53	85.3	142.1		220
	1200	333.3	50	86.1	189.8	6.5
	1440	400	44	86.4	199.7
350WTP1200-20/6	840	233.3	23	85.3	61.7		90
	1200	333.3	20	85.7	76.3	4.5
	1440	400	16	84	79.4
350WTP1400-24/6	1050	291.7	26	85.8	86.7		132
	1400	388.9	24	86.4	105.9	4.5
	1580	438.9	19	85	96.2
350WTP1600-32/4	1120	311.1	35	85.9	124.3		185
	1600	444.4	32	84.7	164.6	7
	1920	533.3	25	87.1	150.1
350WTP1600-45/4	1120	311.1	48	85.9	170.4	7	250
	1600	444.4	45	86.6	226.4
	1920	533.3	40	85.8	243.8
350WTP1600-16/6	1120	311.1	18	85.3	64.4	4.5	90
	1600	444.4	16	83.7	83.3
	1920	533.3	13	87.1	78
350WTP1500-32/6	1050	291.7	35	86.1	116.2	4.5	160
	1500	416.7	32	86.7	150.8
	1800	500	25	86.2	142.2
400WTP1600-32/4	1120	311.1	35	85.9	124.3	6.5	185
	1600	444.4	32	84.7	164.6
	1920	533.3	25	87.1	150.1
400WTP1600-20/6	1120	311.1	23	85.9	81.7	4.5	132
	1600	444.4	20	85.2	102.3
	1920	533.3	16	87.1	96.1
400WTP2000-32/4	1400	388.9	35	85.5	156.1	6.5	250
	2000	555.6	32	84.2	207
	2400	666.7	25	87.5	186.7
400WTP2000-44/4	1400	388.9	48	86.3	212.1	6.5	315
	2000	555.6	44	86.3	277.7
	2400	666.7	36	84.5	278.5
400WTP2000-20/6	1400	388.9	23	86.2	101.7	5	160
	2000	555.6	20	84.8	128.5
	2400	666.7	16	87.5	119.5
400WTP2000-24/4	1400	388.9	26	86.3	114.9	5	185
	2000	555.6	24	86	152
	2400	666.7	19	87.5	141.9
400WTP2000-12/8	1400	388.9	13	85.1	58.2	3.5	90
	2000	555.6	12	83.8	78
	2400	666.7	10	87.5	74.7
